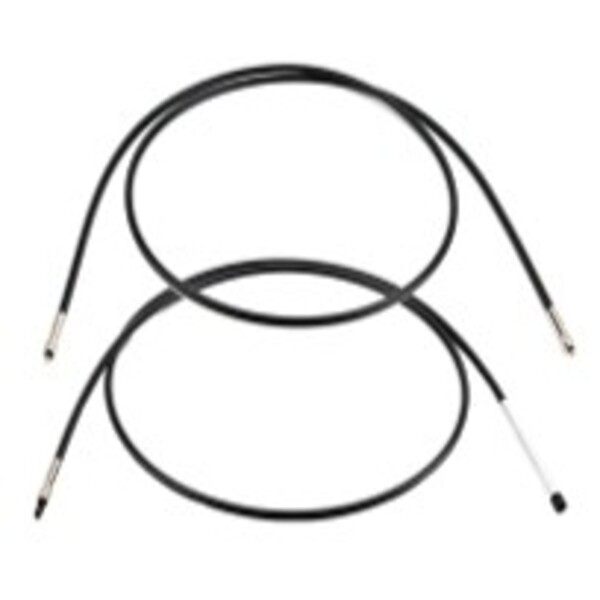

BROLIGHT SIM-6102Y-070615-T/SS Quartz Optical Fiber

Specification:

• Model: SIM-6102
• Structure: 1-in to 1-out
• Wavelength range: 200 – 1100 nm
• Fiber core layer: Quartz
• Optical cortex: Fluorine-doped quartz
• Coating material: Acrylic
• Core diameter: 600 µm
• Length: 200 cm
• Numerical Aperture (NA):22 ± 0.02
• Transmission efficiency:

Single core: 85% (632.8 nm)

Multi-core: 65% (632.8 nm)

• Bending radius:

150D (short term)

300D (long term)

• Operating temperature: -40°C to +100°C
